ZYLO

INSTALLATION

Built in.
Plugged in.
Done.

Zylo is a 24V low-voltage outdoor lighting system designed for straightforward installation — no hardwiring, no electrician.

Download Spec Sheet Request a Quote
Line-art illustration of a modern home at night with Zylo LED lighting along the walkway and stairs
01

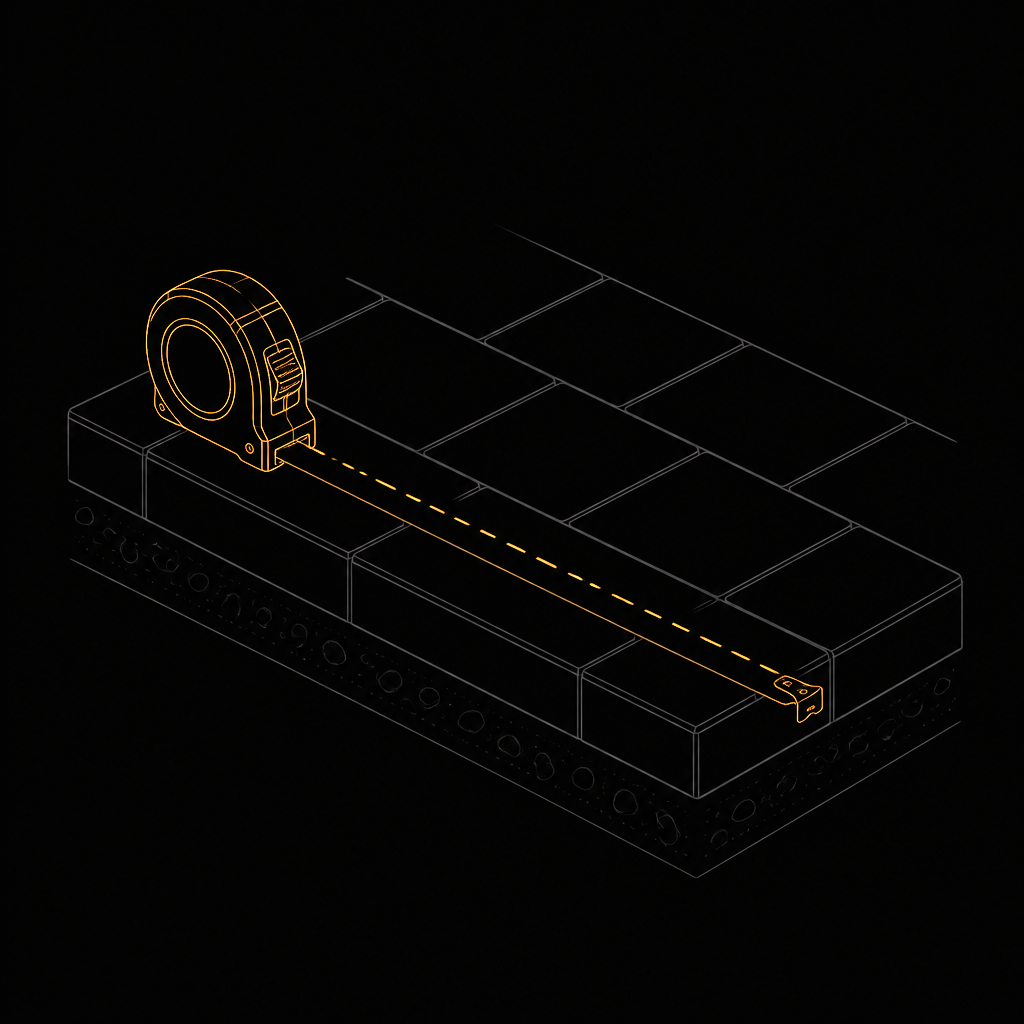

Plan the run

Measure your edge or perimeter. Single runs up to 15m.

Line drawing of a tape measure marking a run length along a paver edge
02

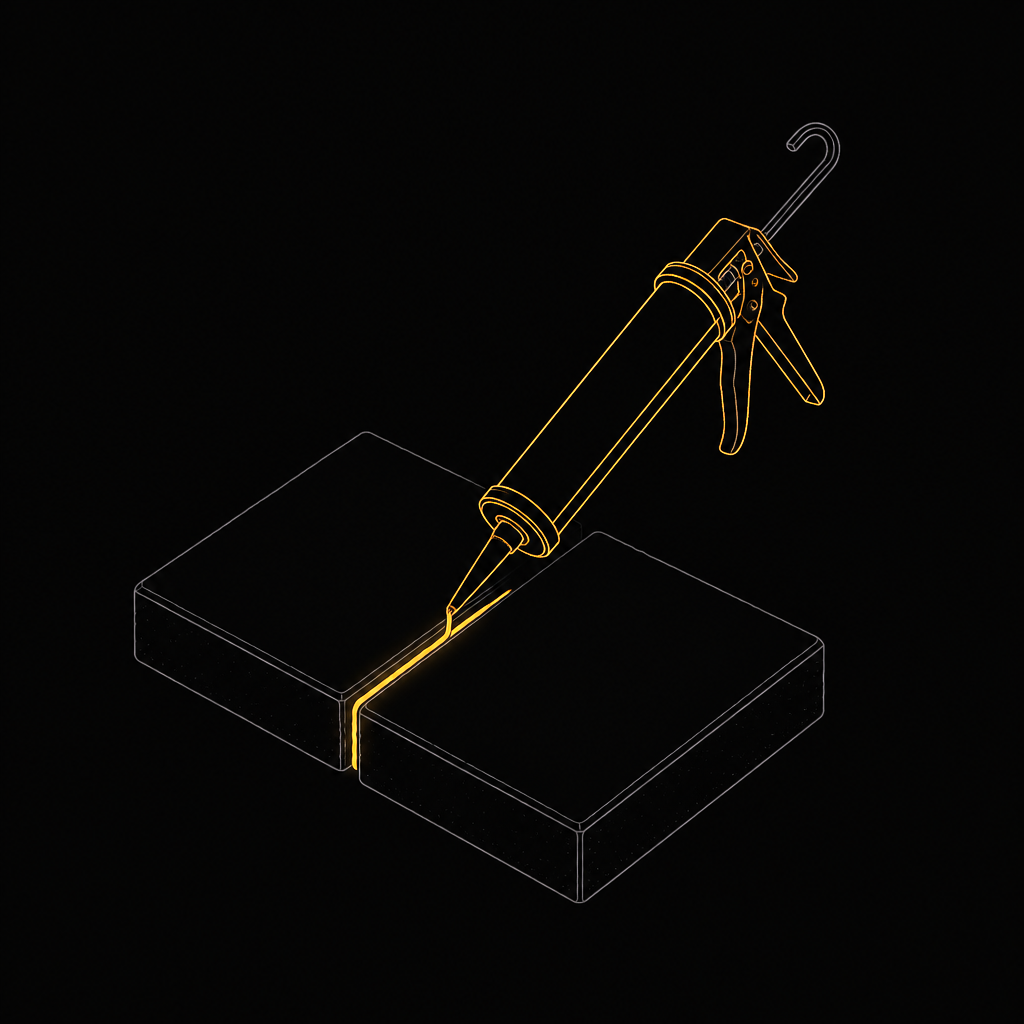

Apply adhesive

Apply adhesive where the channel will sit, typically between pavers or on stone or concrete.

Line drawing of a caulking gun laying a bead of adhesive between two pavers
03

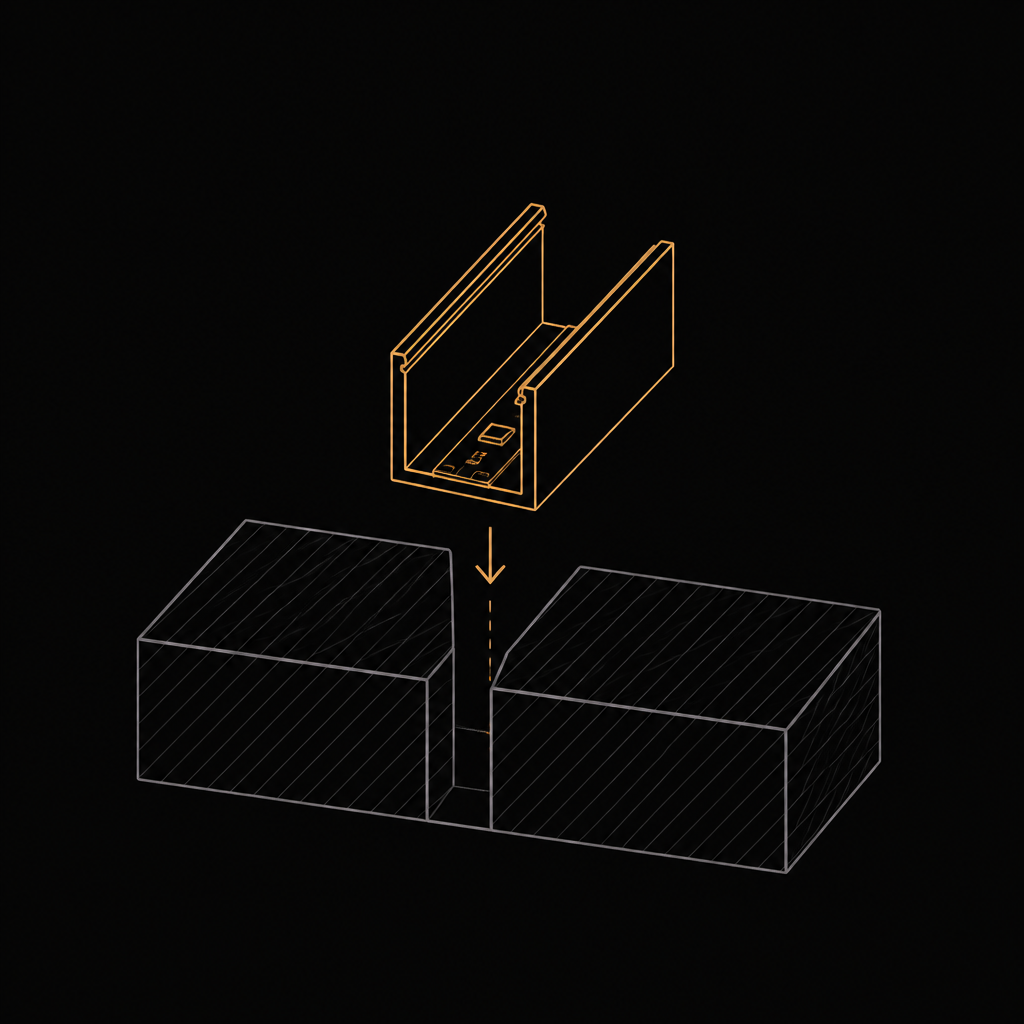

Place the channel

Set the channel into the adhesive and align it flush with the surface.

Line drawing of an aluminium channel lowering into the gap between two pavers
04

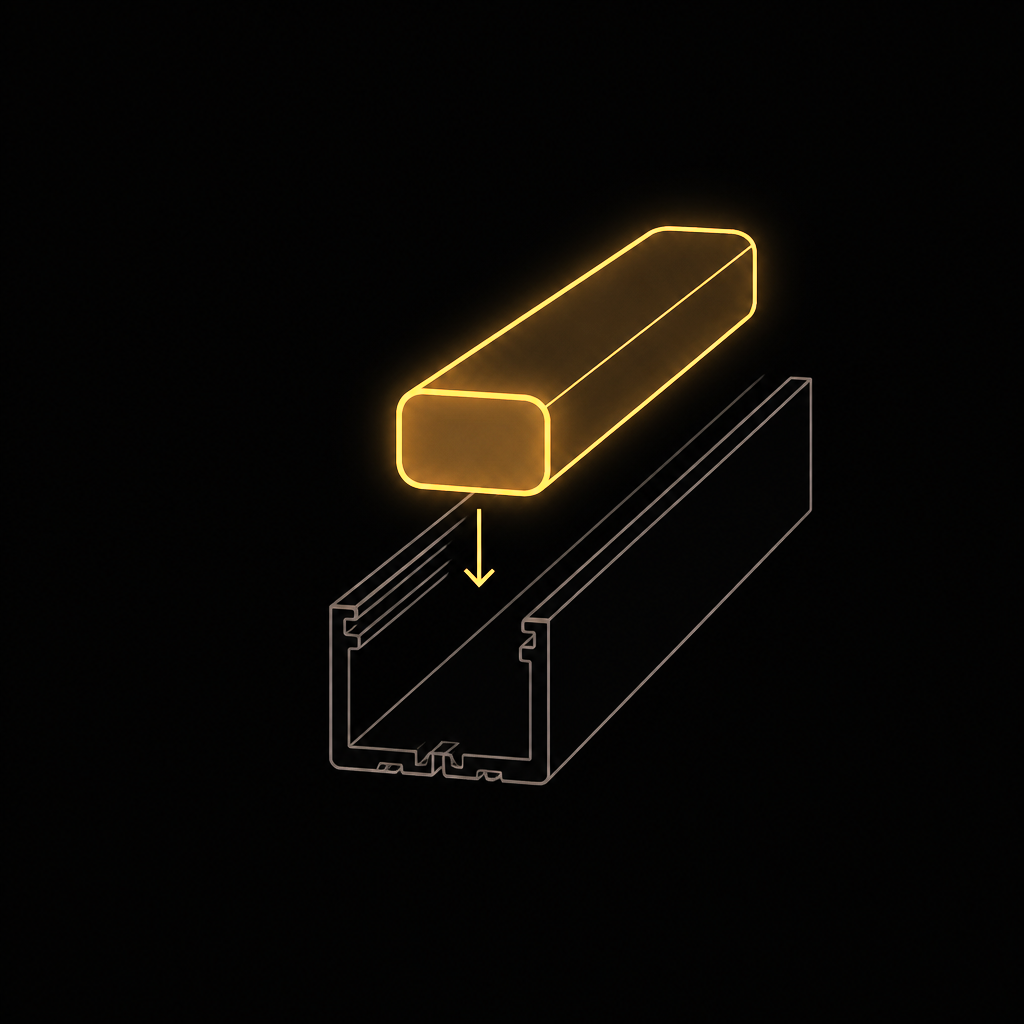

Seat the silicone neon flex

Press the 6 x 12 mm silicone-housed LED neon flex into the channel.

Line drawing of a glowing silicone neon flex being pressed into an aluminium channel
05

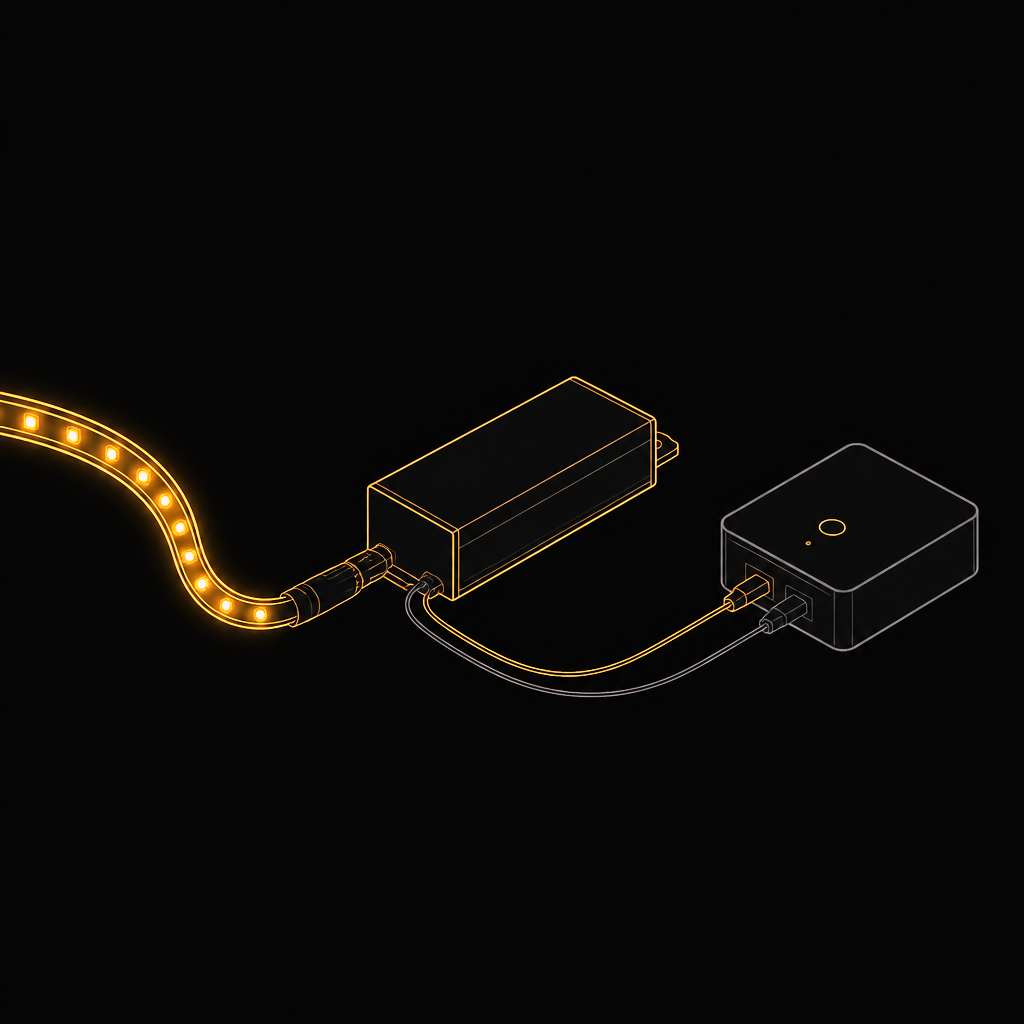

Connect driver & controller

Connect the light to the driver and controller at the planned junction box location.

Line drawing of an LED strip connected to a driver and smart controller
06

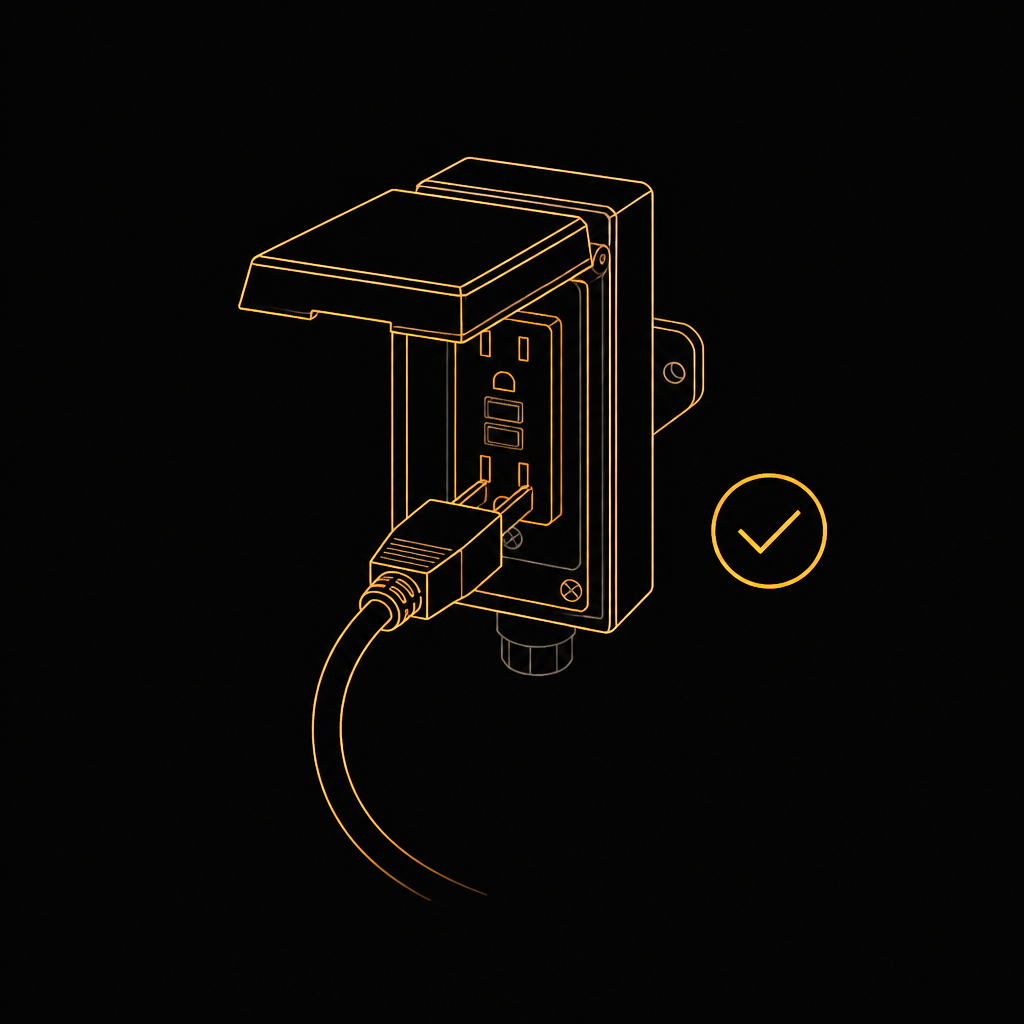

Plug in and test

Plug into a GFCI outlet and test the system.

Line drawing of a plug being inserted into an outdoor GFCI outlet

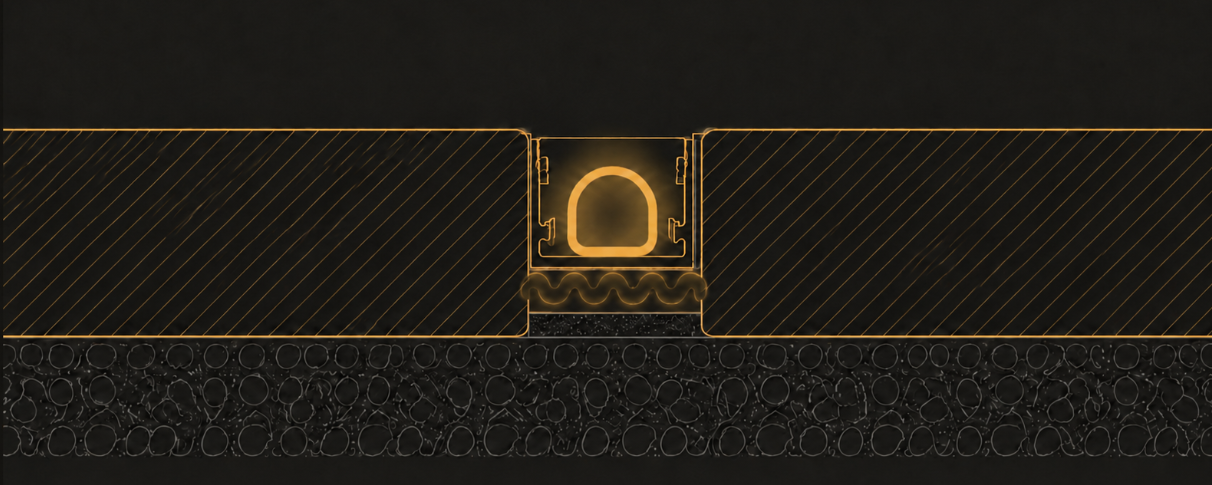

HOW ZYLO SITS IN THE PROJECT

Typical between-paver installation.

  • 1Paver / stone / concrete surface
  • 2Adhesive
  • 3Aluminum channel
  • 4Zylo 6 x 12 mm silicone neon flex
  • 5Base / substrate
Cross-section of a Zylo channel and neon flex installed between two pavers over a gravel base12345

BEFORE YOU START

  • Choose your run length (max 15m per run).
  • Choose straight or bendable channel.
  • Confirm driver size matches your run.
  • Locate your GFCI outlet.
  • Plan junction box location.

WHAT YOU'LL NEED

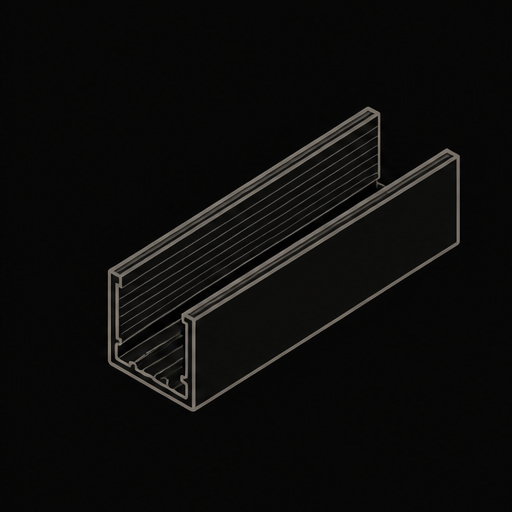

Channel line-art iconChannel

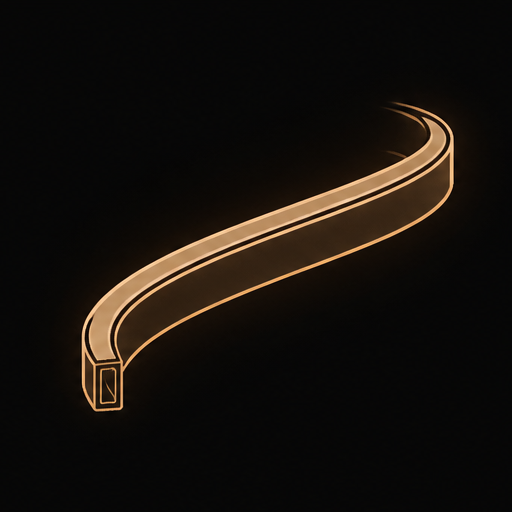

Zylo LED line-art iconZylo LED

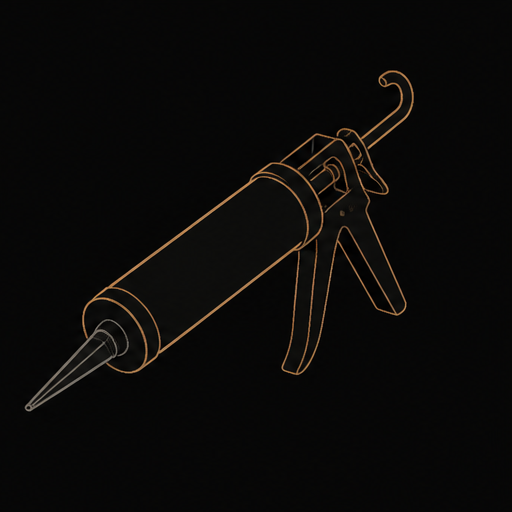

Adhesive line-art iconAdhesive

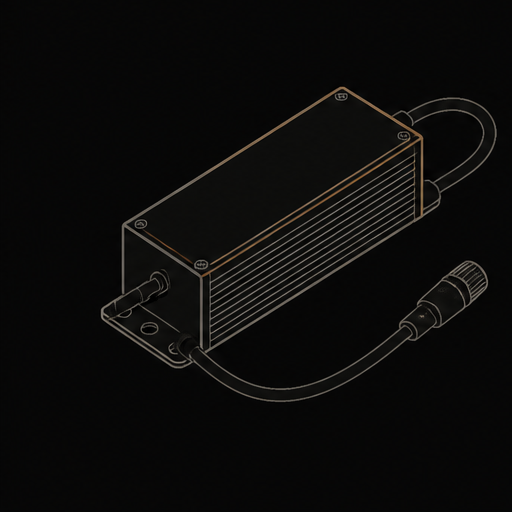

Driver line-art iconDriver

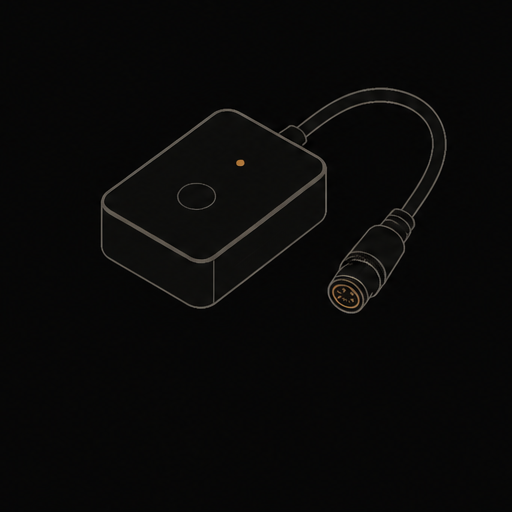

Controller line-art iconController

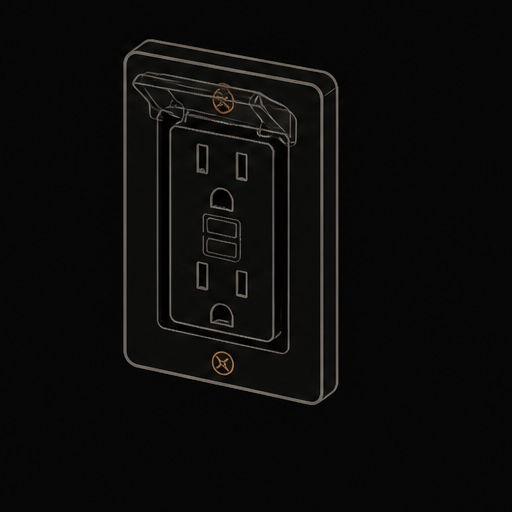

GFCI outlet line-art iconGFCI outlet
Line-art illustration of a laptop showing a lighting site plan

Need help planning the install?

Our team can help design the right layout and spec the right components for your project.

Get Planning Support

Low-Voltage 24V

Safe, efficient, and easy to install.

IP67 Waterproof

Built for rain, snow, and all seasons.

Dot-Free Glow

Continuous light with no visible dots.

Architectural Grade

Premium build for lasting beauty.

5 Year Warranty

Quality you can count on.
